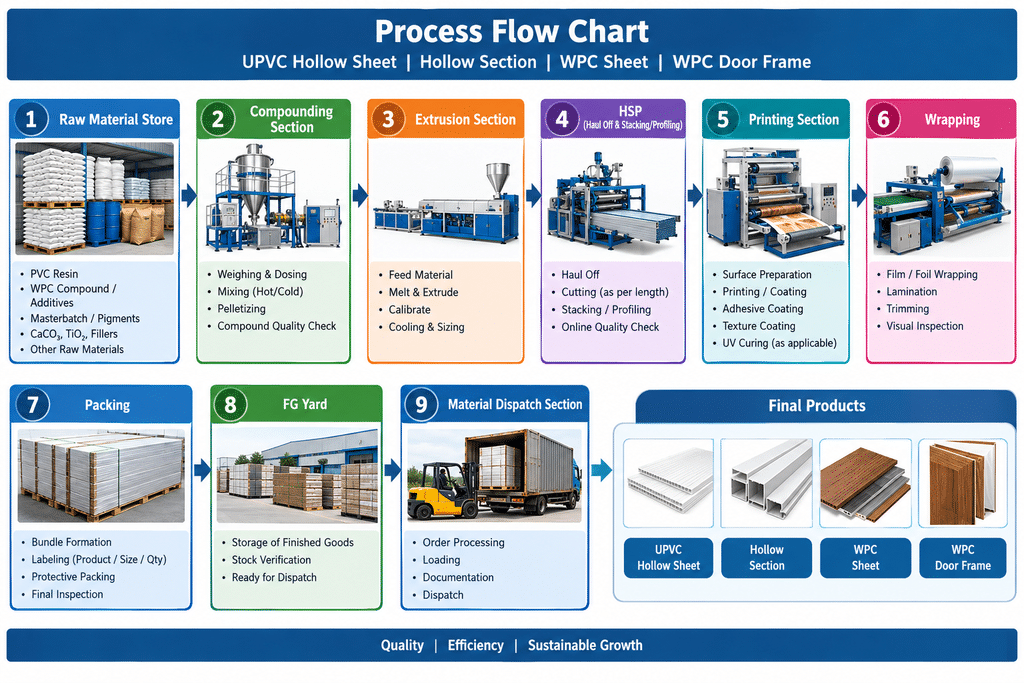

Here is a professional process flow chart for UPVC Hollow Sheet, UPVC Hollow Section, WPC Sheet, and WPC Door Frame manufacturing, covering all sections from raw material storage to material dispatch.
The chart includes:
- Raw Material Store
- Compounding Section
- Extrusion Section
- HSP (Haul-Off, Stacking/Profiling)
- Printing Section
- Wrapping
- Packing
- Finished Goods (FG) Yard
- Material Dispatch Section
It is suitable for use in your Quality Department, manufacturing process documentation, training, and factory display.
Disclaimer:
Disclaimer: This process flow chart is for general reference and illustrates the standard manufacturing process sequence for UPVC Hollow Sheet, UPVC Hollow Section, WPC Sheet, and WPC Door Frame. Actual process steps may vary depending on product specifications, production requirements, and plant operations.
